Tutorial 3 Part 6

Available in: FREE, Plus, PRO & Architectural

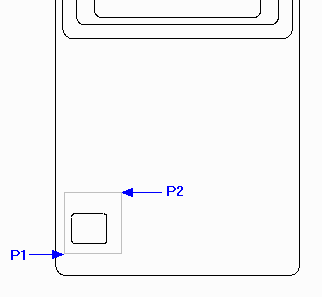

Next we will create all of the buttons. Click and then drag a Window box (P1 to P2 below left) to select the button. Now pick the Rectangular Array button. Click on any of the handles to define the reference point, it does not really matter which because the array X & Y spacing will be set by distance. On the Ribbon will now show the options for a rectangular array. Set both the 'No. X' and 'No. Y' to '5' .Press f8 key and type '12.5' and enter key then '11.5' and . The array will now be complete a shown below right. Click anywhere to deselect the original entities.

Now we will combine two buttons to make one large button. Zoom in to the area shown below left. Click and then drag a Crossing box from P3 to P4 (below left) to select the entities to delete. The entity handles will be displayed. Now press the 'Delete' key, the result should be as below centre. Now simply select the Line command line button , make sure Snap ( f7 key ) is set and add two lines, between the endpoint's P5 and P6 and then the endpoint's P7 to P8. The combined button should now appear as below right.

T3 - Part 6 | Draft It Cad Software Help remove section add lines

Now modify the top row of buttons by deleting the top left most button and combining the remaining four buttons into two as shown. Remember select the lines to delete using a right to left Crossing box.
