Change Pitch

Available in: Architectural

Use this command to alter the pitch of a roof in your drawing.

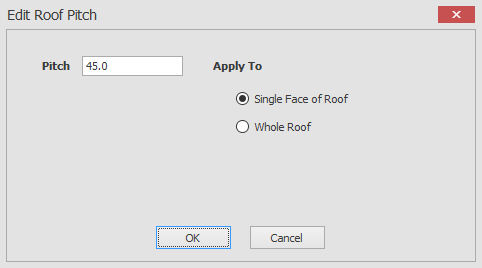

Select the Change Pitch button Pitch and the following dialog box appears.

Here you can specify the pitch.

When you click on the OK button the way that you edit the roof pitch will depend on your 'Apply To' choice as you will see in the descriptions below.

Whole Roof:
All you need to do is to hover the mouse over the roof that you would like to apply the pitch to and confirm your selection by clicking on the left mouse button. The pitch will then be set using your specification.

Part Of Roof:
All you need to do is to hover the mouse over the roof section that you would like to apply the pitch to and confirm your selection by clicking on the left mouse button. The pitch will then be set using your specification.
