Sections Group

Available in: Architectural

The Sections Group is part of the 'Architectural Ribbon Page'. The commands available in the 'Sections' group menu are:-

- Full sections: - Cavity, Single, Timber Frame

- Foundations - DPC, Floor, Footings

- Doors/Windows - Doors, Windows, Miscellaneous

- Walls

- Sills

- Headers

- Eaves Details

- Cladded Walls

- Cladding

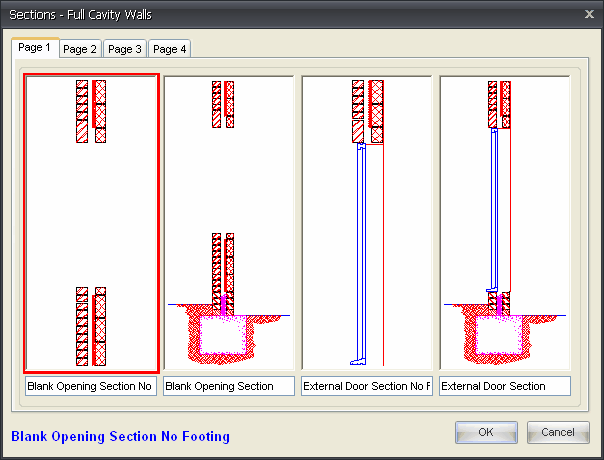

The symbols in each category will be presented for selection in dialog boxes similar to those shown below.

Simply navigate to the required symbol and click OK. The insertion procedure is as with all other symbols.
